Diaphragm Pump Graco Husky 1040, Jual Diaphragm Husky 1040 Graco 1 Inch

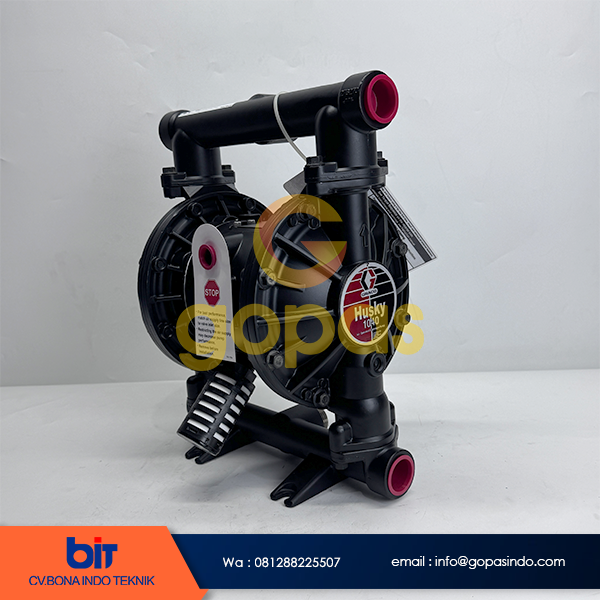

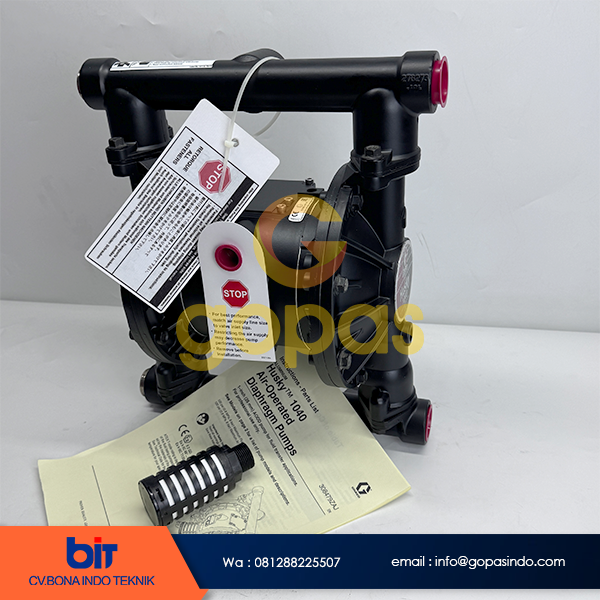

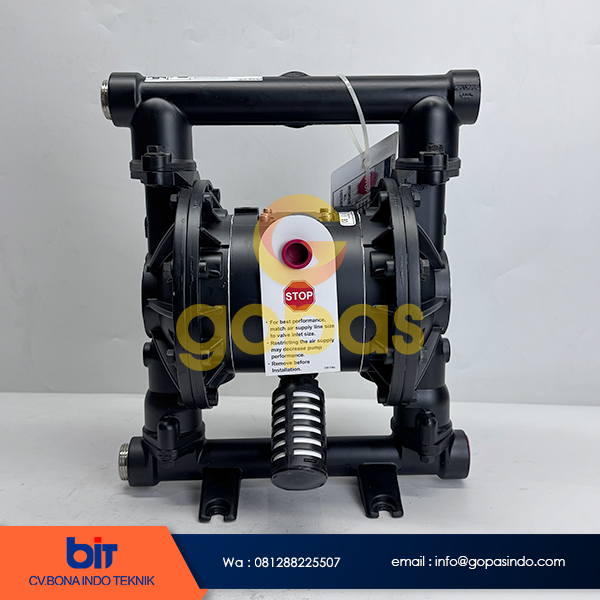

Diaphragm Pump Graco Husky 1040

1–inch (25 mm) AODD pump for fluid transfer applications For professional use only.
Maximum fluid working pressure : 120 psi (0.8 MPa, 8 bar)

Husky : 1040
PN : D7C331
Size : 1 Inch
Air pressure operating range : 20–120 psi (0.14–0.8 MPa, 1.4–8 bar)
Maximum air consumption : 60 scfm
Air consumption at 70 psi/20 gpm : 20 scfm (see chart)
Maximum free-flow delivery : 42 gpm (159 l/min)
Maximum pump speed : 276 cpm
Gallons (Liters) per cycle : 0.15 (0.57)
Maximum suction lift : 18 ft (5.48 m) wet or dry
Maximum size pumpable solids : 1/8 in. (3.2 mm)
* Maximum Noise Level at 100 psi, full flow : 89 dBa
* Sound Power Level : 100 dBa
* Noise Level at 70 psi and 50 cpm : 78 dBa
Maximum operating temperature : 150 °F (65.5 °C);200 °F (93.3 °C) for models with PTFE diaphragms
Air inlet size : 1/2 npt(f)
Fluid inlet size : 1” npt(f)
Fluid outlet size : 1” npt(f)
Wetted parts : Vary by Model. See pages 26–28.
Non-wetted external parts : aluminum, 302, 316 stainless steel, polyester (labels)
Aluminum pumps : 18 lb (8.2 kg)
